Portable Aireation Buoy
Currently the world faces massive fresh water problems. The reduction to practice then using a fuel less generator to distill ocean water with the capacity to then not reintroduce the harvested sea salt back into the ocean is a necessary step to take for general security. The design serves multiple functions. Having an additional salable product then produced from the system's implementation will then reduce the burden of financial obligations while also acting as an insurance policy for the worlds fresh water supply.

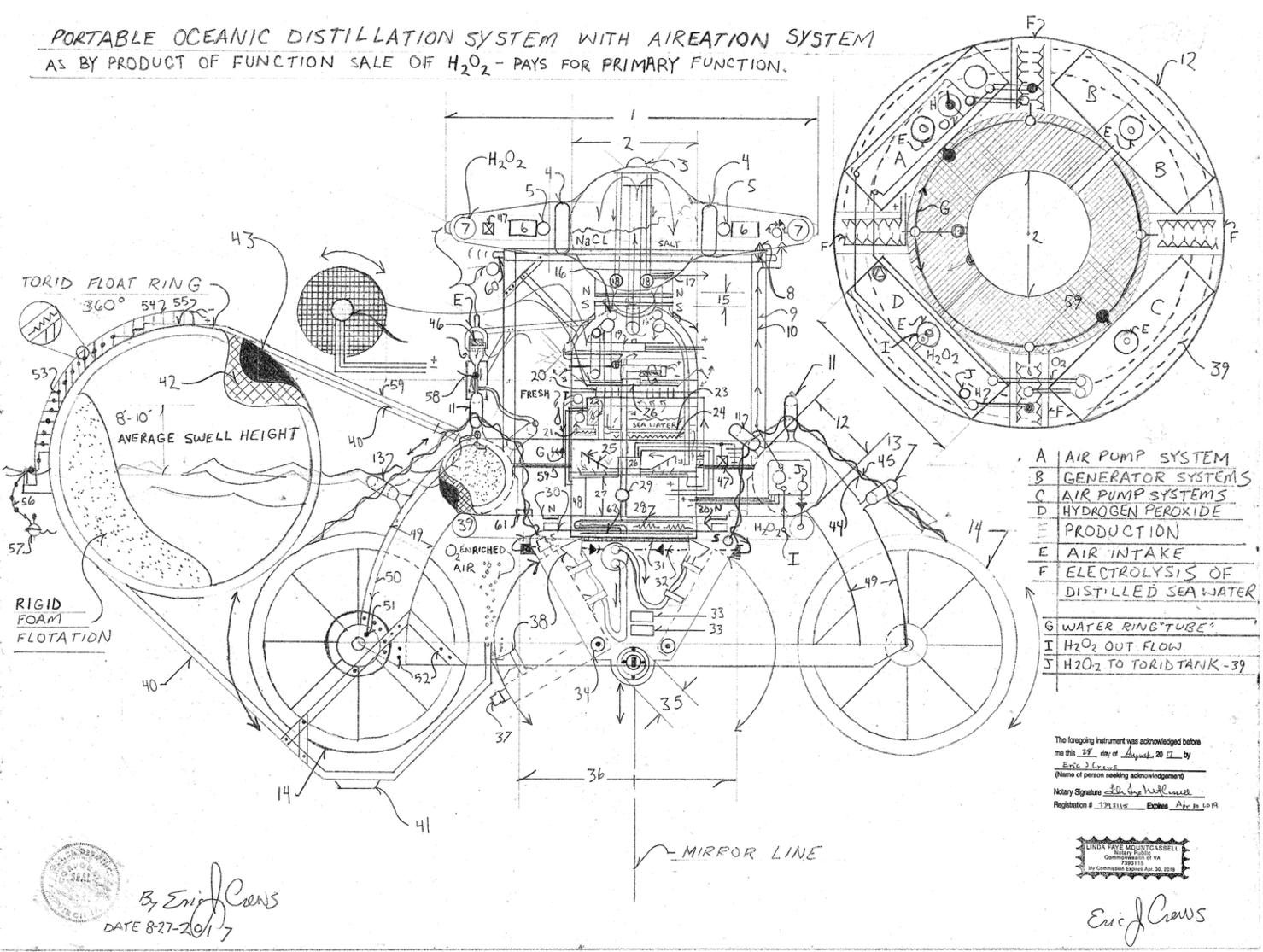

Parts List
1. fuel less flight drone ( contains the ability to accommodate passenger ) circumference
illumination "lamps / marker lamps"( lamps atop letter "E" all of them and upon the sum of 8 frame support
systems then just below the transmitter receiver antenna number 60
2. core system oceanic distillation system with vacuum sale dry system with forced air heating to dry salt
3. communications array / navigation systems
4. disk lifter aero space system
5. spherical positional mobiles ( containing disk lifter sealed force vectoring pseudo "anti gravity"
6. horizontal disk lifter systems polar array about 360 degrees in banks of 2 ( 12 total banks - also aligned for
retro slowing force as well as forward flight )
7. circular toroid hydrogen peroxide storage tank
8. flight drone docking alignment sensor
9. hydrogen peroxide feed tube
10. pressure sensor of flow tube with illumination lamp - deck lighting upon each of 8 vertical supports ( right
side depiction - left side depiction sum of four vertical members the polar arrayed about the center point
mirror line
11. guide hoop
12. inner flotation toroid ( contains systems functions as lettered)
13. guide hoop
14. cable and enriched air hose reel ( motorized ) lowers submersible bubbler unit
15. electromagnet flight drone locking ( hard mechanical ) docking alignment system
16. vacuum pumping system (electric)
17. vacuum discharge vacuum exhaust vent
18. vacuum system vacuum pumps
19. electric motor
20. air under air pressure high velocity air injection matrix
21. fresh water tank
22. evaporator for the refrigeration system
23. hot plate " boiler plate" electric resistance heating only
24. electric resistance heating elements 480v ( electric arc furnace )
25. rotating stir grid - circular
26. electric motor - rotates number 25
27. generator "bay" electronics "bay" - systems control circuits logic circuits also contains navigation
28. electric resistance heating elements ( preheat )heating elements
29. hot salt water control valves
30. submersible electromagnet locking ( mechanical ) docking guide system aligns with magnets and
hard locks mechanical
31. salt water intake filter and hard intake grid
32. enriched O2 air pressure tube
33. submersible fuel less generator systems
34. submersible lander feet hinge
35. spherical positional force vectoring mobile with disk lifter drive system
36. submersible bubble unit ( aireation unit)
37. sensor sensitive lander foot
38. bubble discharge "head"
39. toroid H2O2 ( hydrogen Peroxide ) tank
40. float ring ( toroid) ring connector support "frame" polar array with circumference the 16" segments
upon the outer circumference
41. rubber lander foot sum of 8 about the polar array
42. rigid weave fiber glass mat
43. hard fiber glass
44. combined cable and air feed/ cable safety/ and information wire cord encapsulated as one "rope"
45. stainless steel cable
46. shielded air intake
47. static electricity ground box "plasma box " contains sensor and static electricity dissipation system
48. refrigeration systems contains switch valves refrigerant storage and condenser also environmental
controls ( cabin heat and cabin air conditioner cooling exchangers
49. reel support frame support "arm"
50. air feed hose to combined composite air feed hose
51. air fitting with additional pneumatic pressure feed swivel / so that air is able to be constantly fed to the
entire reel of hose as it unwinds
52. rivet points
53. heated ladder rung heated to prevent icing
54. hand rail ( heated ) to prevent icing
55. heated deck ( non slip surface)
56. extension rope with flotation
57. ocean bobber rescue buoy
58. valve
59. cross grid decking open port allows water to drain
60. communications antenna transmitter receiver
61. cable guide port
62. diffused water intake manifold
