Indoor Space Heater Induction Cook Top
The following indoor fuel less electric space heater is an option in inclement weather when the Utility "grid" loses power either in winter or in summer time when the excessive loading causes loss of power for air conditioning. The design allows the user to then have a reduced utility bill.

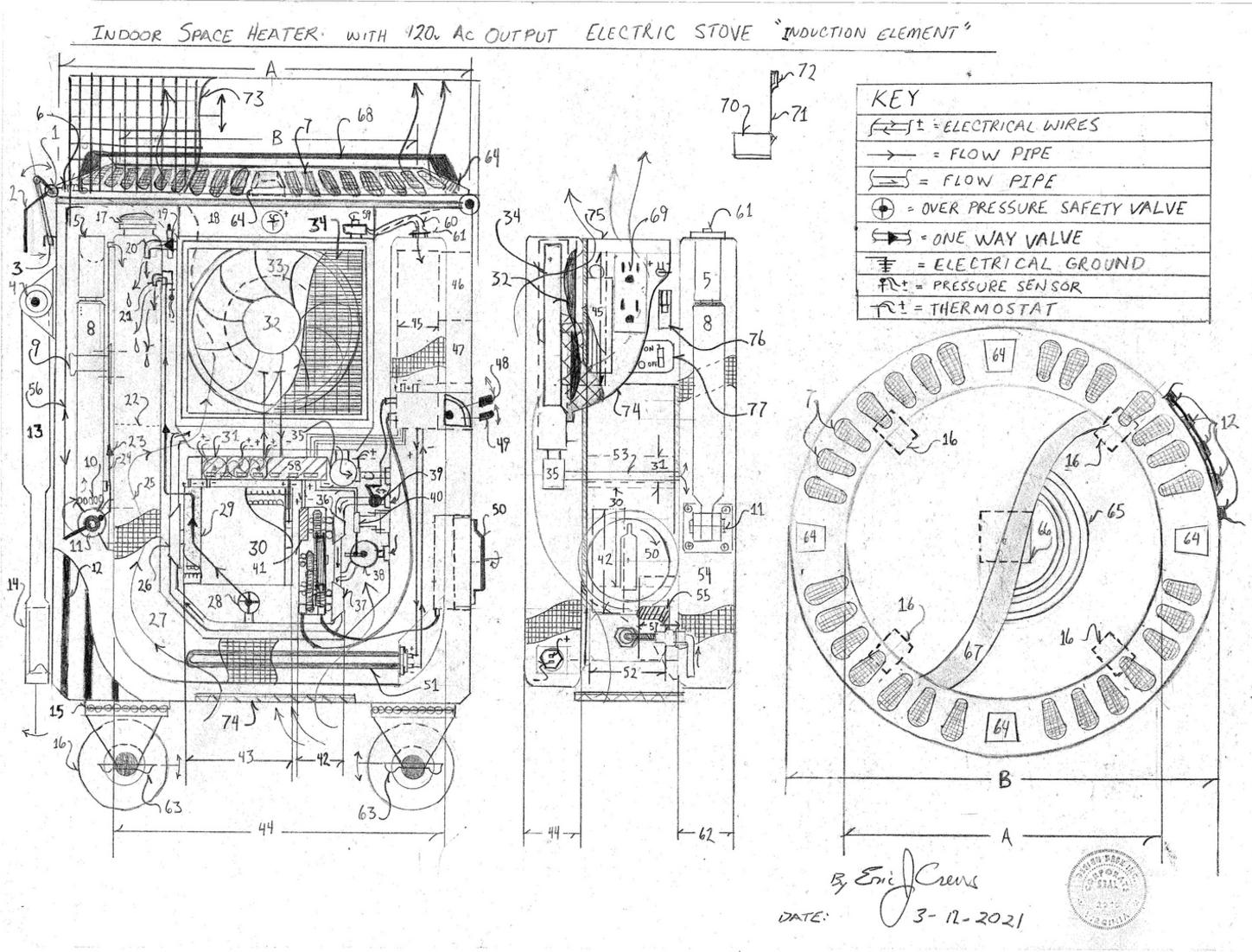

Parts List
1. lid clasp hinge
2. lid claps lever
3. lid clasp lock hoop
4. unit drag handle hinge
5. "L" shaped pneumatic pump (piston type air pump) handle
6. lid clasp retainer coil spring
7. heat vent
8. pneumatic manual air pump
9. air pump retainer clip
10. air pump air intake ports
11. air pump mounting bracket and rubber "bushing" an divergence valve
12. hollow external insulated casing ridges 360 degrees docks the safety grid (child safety) screen lock in place with compression spring clips
13. external pull handle telescoping and locking
14. pull handle hand grip
15. wheel base swivel bearings
16. unit roller wheels
17. oil level float system and pneumatic pressure indicator gauge unit - pressure rated screw compression
18. unit thermostat housing
19. one way valve silicone oil "return" flow pipe
20. silicone oil return
21. over pressure silicone oil "return"
22. oil level line (pneumatically pressurized oil)
23. one way valve sum of two one to each U-pipe
24. pneumatic "fill" flow pipe sum of two one to each U-pipe
25. air flow path
26. Magneto drive impeller hydraulic impeller
27. "U -Pipe" bend taper
28. over pressure safety valve - discharges over pressure via flow pipe
29. Magneto Ac current (alternating current) generator electrifies the field coil of the main Ac generator to cause output electricity
30. Main Ac generator of electricity - rotated in tandem with the Magneto and hydraulic drive impeller , number 26
31. control electronics ventilation fan bar multiple blower cooling fans separate chamber than the "system heating" chamber intake
and exhaust horizontal ports
32. Heater unit blower fan (metal fan)
33. Heater unit blower fan electric motor
34. oil radiator
35. oil radiator "oil pressure" regulator discharges "over pressure to the blow down "u-pipe" , number 62
36. hydraulic draft accelerator draft impeller
37. high speed hydraulic pump
38. solenoid controlled divergence valve controls the hydraulic draft effect automatically referencing the gear system r.p.m. (revolutions
per minute sensor) the extrapolating the solenoid, number 40's position via electronic circuit
39. " all stop safety valve"
40. divergence valve control solenoid
41. gear box r.p.m. sensor and "brush less" electric drive motor unit - communicates via ribbon wire / multi-wire (4 wire) to the system
logic processor
42. hydraulic draft accelerator "gear box" causes the pump, number 37 to rotate at ten times the rate of the preceding hydraulic
impeller, number 36
43. main generator unit
44. "U" shaped heater pipe contains silicone oil non electrically conductive non flammable oil
45. generator electronics control components / heater control electronics
46. receptacle recess
47. heater / generator / cook top control panel
48. all stop lever
49. "start" spring spool cable ratchet release lever
50. "start" cable ratchet wind dial (twist to cause the cable reels to cause mechanical "tension" to then start the system rotating when
lever, number 49 is position to allow the coil spring ratchet spool (flat spring) to decompress. The spool then allows for the
gears to "free spin"
51. silicone oil electric resistor heater element
52. electrical ground electric cord (sheathed electrical wire) stow surrounds the base "air intake" for the heater system
53. oil flow discharge flow pipe
54. blow down "u-pipe"
55. manual "re-fill" valve - used post blow down - post system alarm (indicator light upon the control panel) to then re-fill the
heater "u-pipe" number 44)
56. air flow divergence valve valve position "rod" used post alarm then allowing for the oil in the blow down u-pipe to then
be "pneumatically pressurized causing the re-fill of the primary heater u-pipe, number 44
57. electrical ground wire stow
58. system electronic circuit control bay
59. oil radiator over pressure safety cap vents over pressure to the blow down U-pipe , number 62
60. flex pressure hose
61. compression clamp
62. U-pipe blow down chamber pipe
63. roller wheel wheel lock
64. hot plate recess
65. inductance coil causes heating for the cook top hot plate
66. inductance cook top control electronics
67. heat safe glass
68. metal heat plate (stain less steel)
69. receptacle output 120v Ac
70. cook pot
71. cook pot vertical handle
72. cook pot vertical handle hand grip non thermally conductive "rubber"
73. child safety grid (circular) adjustable height
74. blower fan internal air flow manifold - directs hot air to the units vents, number 7
75. thermal safe gasket
76. receptacle circuit breaker (30 amp)
77. system control panel
* Note - number 58 communicates via "ribbon wire" multi wire to the logic processing in number 45 and control panel 77.
* Note - the Magneto and generator then of sealed type filled with inert Noble gas and are explosion proof.
* Note - the unit contains "all stop" safety feature and "tilt" off switching should the unit be tipped over - only "runs" in the vertical position.
* Note - a percentile of produced electrical current from number 30, then able to be "re-introduced" to the system's electric drive
motor, number 41 allowing for the system required "run" / "operating" speed according to function selected upon the control panel
* Note - the U-pipes oil flow system is electrically grounded
*
Disclaimer - If attempting to produce these design yourself additional engineering may be required.. Design Desk Inc. will not be held liable. If you proceed with construction your self it's at your own risk... by use of "free to use systems" you acknowledge and accept the terms.. ( Please note not all systems contained here in have been released ).
