Ion Flow Field Generator
The following design system is a solid state (no moving parts) electrical generator concept that uses an inert noble gas torrent (internal gas velocity) to produce electricity. The system used for high intensity Uv light production may be useful implementing a wide angle lens to speed the decomposition of atmospheric Methane as a self powered arc lamp. The design also as a safety system for methane hydrate ice release if placed upon a flotation system. The system also used within the design listed at https://www.designdeskinc.com/atmospheric-methane-destruction-dirigible.html

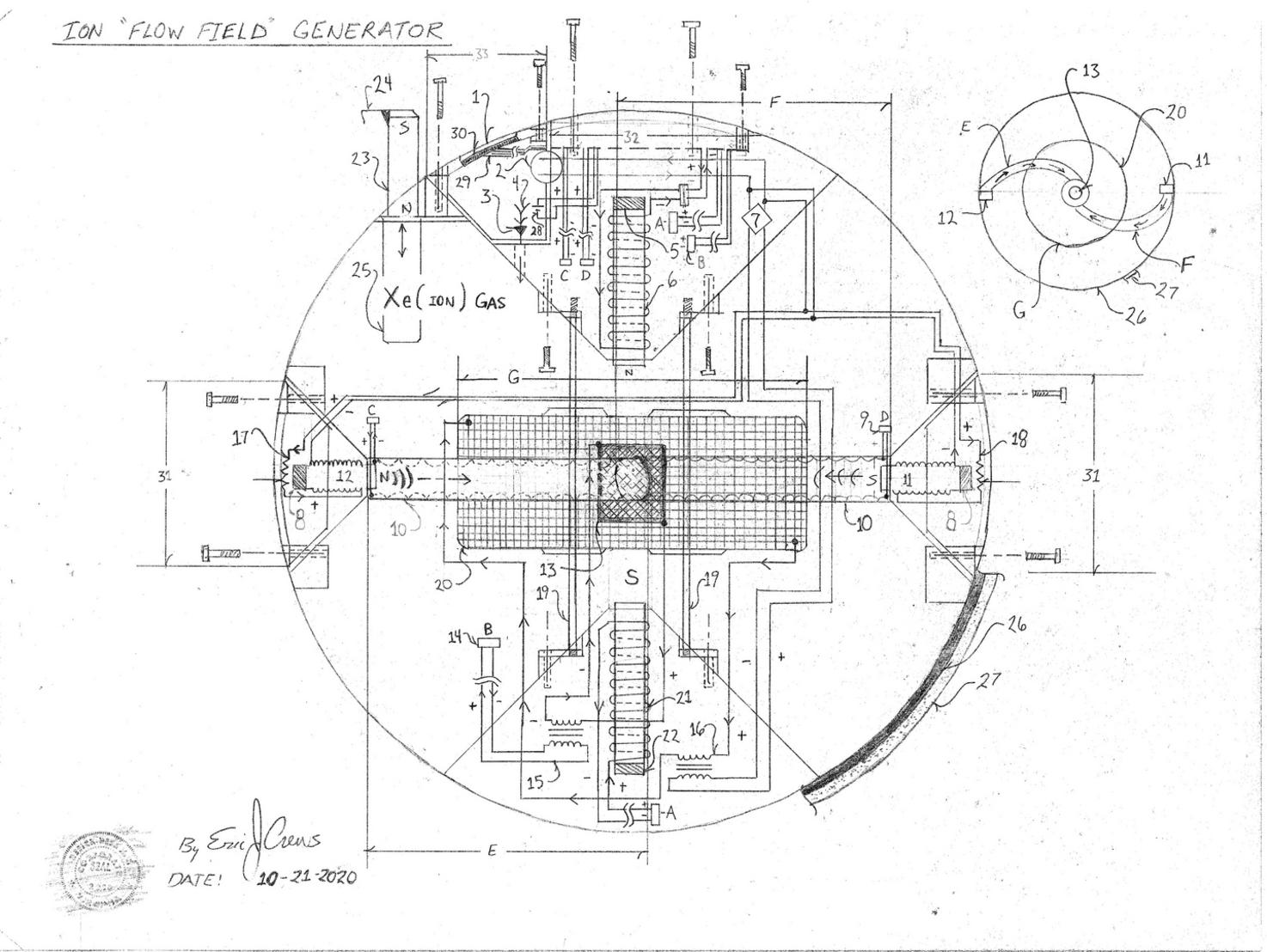

Parts List
1. control display (touch screen or toggle panel)
2. receptacle
3. one way valve gas (Xenon gas valve )
4. gas (Xe) fill fitting (locking compression protrusions to accept the fill hose fitting)
5. sealed pole electromagnetic
6. permanent magnet and electromagnet
7. voltage regulator
8. ion accelerator flow rate sensor ("particle accelerator" electromagnet / permanent magnetic sealed magnetic pole)
9. particle accelerator / ion accelerator power feed "wire" bus clip
10. electromagnetic ion accelerator "tube" / with open bore ports to allow for ionized gas adhesion causing slight increase in velocity
producing "pressure" - high velocity torrent producing ion flow yielding harvested reintroduced static electricity at regulated levels. The
ports then as a draft entry as the metal is shaped like an air foil "wing" to increase Xenon flow into the particle accelerator. Air flow above a aircraft
"wing" has more distance to travel producing lift upon the underside of the "aircraft wing" the same is true for the intake port where as lift then
converts to suction ( via Xenon gas adhesion), produced by the particle accelerator's Xenon velocity. the particle accelerator "wing" then is
an indent within the diameter of the particle accelerator "tube".
11. particle accelerator "head unit" electromagnet with one pole magnetically sealed - also "emits" opposite magnetic polarity Xenon ion
alignment about the inner circumference of the sphere - if "emitting" south pole alignment in the "tube" then the circumference magnetic
alignment is magnetic North. The accelerator intake is magnetically "sealed" / null - circumference ion acceleration aids in "grid pick up",
(number 13 and number 20), polarity reversal producing electrical current
12. particle accelerator "head unit" electromagnet with one pole magnetically sealed - also "emits" opposite magnetic polarity Xenon ion
alignment about the inner circumference of the sphere - if "emitting" north pole alignment in the "tube" then the circumference magnetic
alignment is magnetic South. The accelerator intake is magnetically "sealed" / null - circumference ion acceleration aids in "grid pick up",
(number 13 and number 20), polarity reversal producing electrical current
13. core electricity "pick up" / inductance "grid" (platinum nickel composition)
14. wire "bus" clip
15. electricity transformer
16. electricity transformer
17. ion accelerator variable resistor - adjust the ion accelerator's current level changing the "ionized gas (Xe) flow velocity ( circuit controlled
variable resistor) intake adhesion ports upon the concave surface of the tau curve to cause horizontal torrent spin letter "E" - aids in
polarity reversal upon the pick up grids at high gas velocity levels
18. ion accelerator variable resistor - adjust the ion accelerator's current level changing the "ionized gas (Xe) flow velocity ( circuit controlled
variable resistor) intake adhesion ports upon the concave surface of the tau curve to cause horizontal torrent spin letter "F" - aids in
polarity reversal upon the pick up grids at high gas velocity levels
19. internal support mounting system mounts the two inductance "grid" electricity "pick up's" sum of four "rods" placed in a square to support the
grid correctly also supporting number 13. The "rods" (+) top end mounting lock nut and rod then are also electricity connector points to direct via
sheathed / insulated wires, electrical current to the power management "bay" number 32. The rods negative (-) return then regulated and
directed to the particle accelerator to increase the speed of the ionized Xenon.
20. inductance "grid" electricity "pick up" grid (placement of the electrical wires then using a thermal shielded connector with the contact location
of the connecting wires upon the inducing pick up grid a critical factor to cause the electrical current to "cycle" between positive + and
negative - / "return" . (platinum nickel composition)
21. permanent magnet / electromagnetic
22. sealed magnetic pole of the electromagnet
23. drop magnet permanent "tilt" magnet (changes the shape of the internal ionized Xe gas - sealed chamber is not exposed to
the Xenon (Xe) inert Noble gas)
24. lift tab
25. permanent magnet "drop" chamber magnetically conductive but sealed from the Xenon chamber
26. pressure hull
27. magnetic and electrical insulation with non electrically conductive outer "hull"
28. battery
29. ribbon wire multi wire communications wire from the electronic circuit "bay" to the control panel display
30. display panel electronic circuits "bay"
31. access panel refrigeration unit cools the particle accelerator tubes letters "E" and letter "F" - vented refrigeration condenser with
cooling fan and electric motors ( sum of four ). The electric motors are sealed gas type / explosion proof, driving a blower fan array
32. electricity management control "bay" battery charger circuit board - generator / lamp management circuits / output electricity regulation circuits
thermal safety circuit "causes" system "all stop" if fault or out of parameter function is detected
33. access panel - cooled chamber / contains refrigeration evaporator chilled from both refrigeration units in number 31
Description
The above design system uses ion flow of Xenon to cause accelerated flow of inert gas to produce electricity with no moving parts excluding the circuit controlled variable resistor. The system is a sealed device producing excess electricity to then be used for an external application. A percentile of collected electricity is able to then be reintroduced into the system's electromagnet magnetic intensity, to "increase" the final output electricity level.
Number eleven and number twelve cause a magnetic alignment of the inert Xenon to then allow the intake draft into the particle accelerators (letter "E" and letter "F"), to then cause a mid line ionized draft flow about the internal diameter within the pressurized sphere. The "ionized" inert Noble gas then causing a magnetic polarity alignment colliding at the particle accelerator exhaust. The Xenon, then by flow adhesion, causes the torrent within the greater space within the flow field generator, producing magnetic polarity differentiation upon the "grids". The particle accelerator tube intake bore holes then add to the system's cyclone effect.... ("spiral draft effect") and also assist in the magnetic field alignment upon the stationary electricity pick up grids that causes "open" arc across the grid producing illumination of the Xenon.
The design's torrent speed regulation is critical and is attained by the design's electronic circuits to not cause excessive core field (from number 6 and number 21) or Xenon flow by the particle accelerators maximum operating level limited by fuse / circuit breaker and electric resistor. The system regulation system also contains an "all stop" feature should "out of parameter" operation occur due to component malfunction. Torrent speed sensor within the particle accelerator "head units" numbers 11 and number 12 ion intake ports.
The "core" magnetic field produced by numbers 6 and number 21, then is "peeled" by the particle accelerators exhaust and causes electrical induction within the two electricity pick up grids numbers 13, 20 causing electric arc between them then the plasma is acting as a lamp filament.
The support rods number 19 will also induce electrically and can be made to only handle a specified level of current like a safety fuse. The ionized Xenon then becoming a luminescent plasma (low power model).
The "over unity" aspect then by the magnetic density (Gauss) of the permanent magnet at the core of the electromagnet ( numbers 6 and number 21). The grid / filament then also accepting (inducing) the static electrical flow produced from the Xenon torrent of high velocity ionized Xenon. the particle accelerators "Letter "E" and letter "F" may also induce electrical gain causing inclined speed of Xenon. The ionized Xenon flow then regulated by the sensor upon the intake of the particle accelerator at the mid line "equatorial sphere closure" line. The "container sphere" then of thermal safe glass encased in metal within electrical insulator with exposed glass port for the light to escape. The exposed glass then with translucent Uv light safe plastic (electrically non conductive), between 4 layers of thermal
glass (thermal glass laminate).
The Xenon torrent then causing alternating magnetic field flow across the inductance grids with a percentile of collected electrical current then able to be "re-introduced" back to the system's components to attain increased electrical / "lumen" output levels.
Letter "A" docks to letter "A"
Letter "B" docks to letter "B"
Letter "C" docks to number 32
Letter "D" docks to number 32
Letter "E" = particle accelerator "tube" (multiple open ports upon both sides in the horizontal equatorial plane of the particle accelerator
tube - allows tau spin of the Xenon causes polarity reversal upon the pick up grids)
Letter "F" = particle accelerator "tube" (multiple open ports upon both sides in the horizontal equatorial plane of the particle accelerator
tube - allows tau spin of the Xenon causes polarity reversal upon the pick up grids)
*
