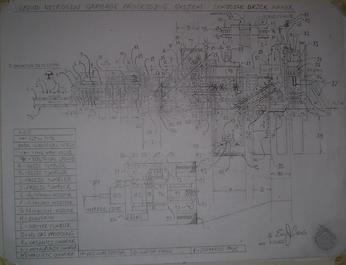

Liquid Nitrogen Garbage Processing System
The following design system is a garbage "recycling" system that uses liquid Nitrogen to "freeze shatter" garbage and recycle it's components into structural bricks for building houses....
In the current conditions encountered with massive wildfires damaging forest and the inclined cost of stick build wood structures replacement... using a recycling system, then electrified by free energy, is a rational path to reduce the cost of housing with inclined fire and structural integrity safety systems.
Currently we separate garbage and recycling then collect the recyclable plastic / glass / and paper using fossil fuels to collect the material. Spending $0.01 to collect a unit density value of $0.000001 will cause a recycling company to go broke.... Fuel less recycling ( collection and processing ), then makes the effort a profitable endeavor allowing increased number of facilities to then be installed from the monetary gain of the
salable "end product" ie... structural engineered bricks / joist / rafters etc... Though cryogenic processing for recycling is nothing new the addition of fuel less generators to power the process makes the effort cost effective.
With "peak oil" looming the collection of urban garbage is a serious situation..... in economic failures, the removal of trash / garbage, becomes a paramount problem to prevent environmental "run away effects" regarding wide spread pandemics / disease / and potable water contamination.
The following link then a fuel less electric garbage truck is then to be used in tandem with the design system below. The fuel less garbage truck then does not require a battery to operate...... listed at https://www.designdeskinc.com/electric-transit-bus-motor-system.html. The power plant for the Liquid Nitrogen garbage processing system then listed at https://www.designdeskinc.com/cross-pump-generator.html.
The generator and garbage truck used in tandem allows the public to recycle with "ZERO EMISSIONS" cost effective. The system, including the collection of the refuse, will then be able to yield a salable building structural product to reduce the harvesting of trees that ... convert / sequester Carbon Dioxide (CO2) and increases the habitat stability for wildlife.

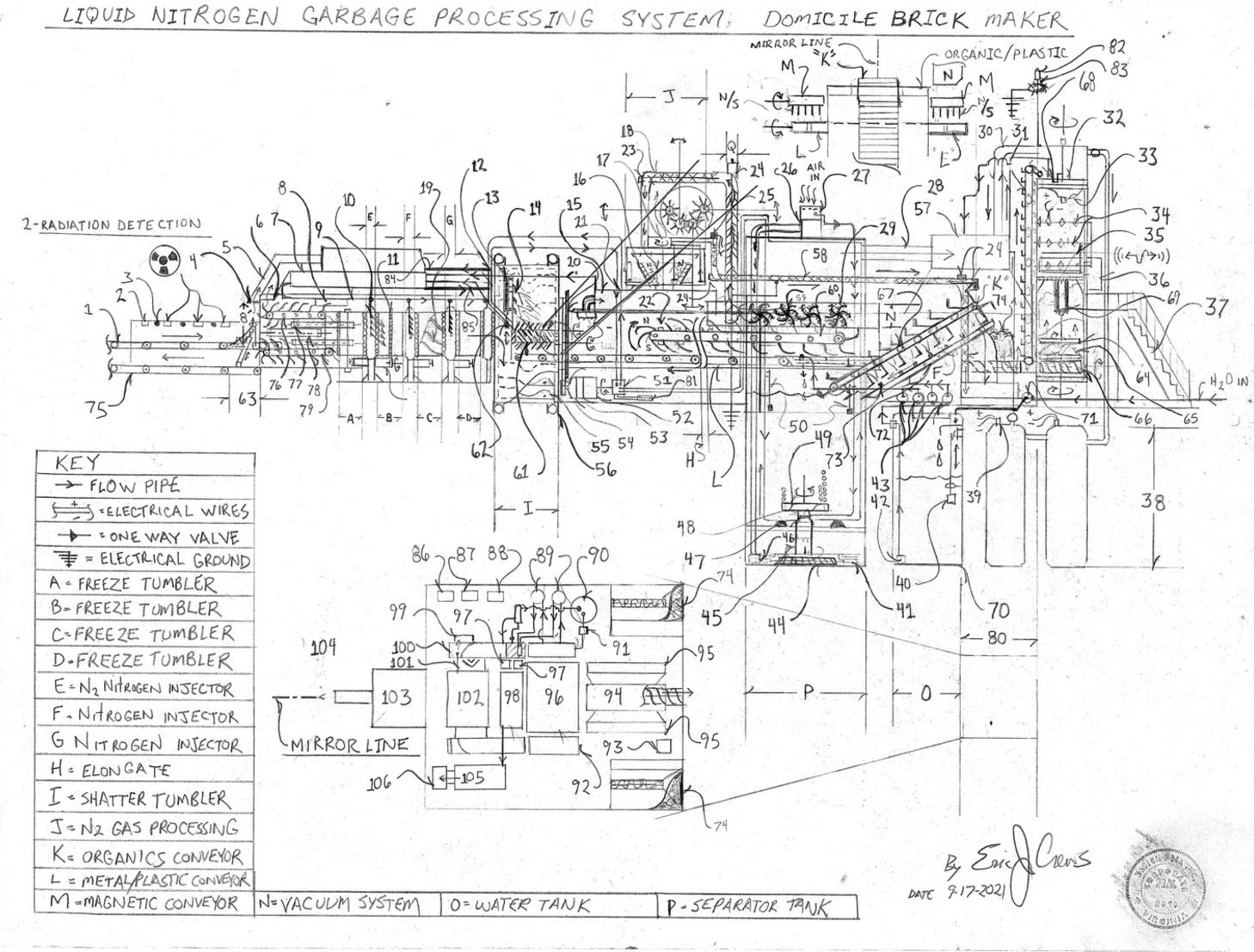

Parts List
1. load conveyor belt system
2. geiger counter / radiation detection system actuates the "reject" drop gate to then refuse contaminated garbage
3. lamp
4. ventilation evacuation and warm air injection - warm air injection plenum along the ceiling of the feed conveyors numbers 76, 77, 78
5. air flow duct (electrically grounded)
6. Nitrogen (N2) high flow intake / prevents Nitrogen from escaping the system
7. air distillation and gas stratification system - yields the collection gas from the garbage inert / non flammable
8. liquid N2 injection control / pump control electronics
9. insulate grounded liquid N2 flow manifold
10. liquid N2 injection manifold
11. freeze tumbler sealed bearing race
12. Main N2 shatter tumbler gas evacuation system
13. main bearing "shatter tumbler" lubrication low flash point with lubrication fittings to maintain
14. liquid N2 injection "main injection for the "shatter tumbler" contains hydraulic slam hammer to prevent stuck garbage
15. central heating ventilation air conditioning (h.v.a.c.) system maintain operating temperature within the system to
allow / prevent lock up due to temperature as the N2 is cold
16. centrifuge to separate metals from plastic - evacuated by ultra high speed vacuum the centrifuge then with internal stir brushes
17. high speed vacuum
18. metal and plastic shatter flow pipe with internal rotating brush * electrically grounded flow pipe with external electrical insulation
19. freeze tumble internal ribs allows the garbage to ride the tumbler speed to drop the frozen trash from height causing it to fracture
20. h.v.a.c. external air intake
21. hydraulic fluid pressure lines primary drive for the rotation of the freeze tumblers (freeze tumblers also with electric motor drive systems)
22. magnetic brush conveyor also inducing static electrical charge to the plastic shatter causing conveyor brush
adhesion (system electrically grounded redundantly)
23. pipe internal "brush" electric drive motor
24. pipe internal "brush" electric drive motor
25. pipe internal brush
26. injection and evacuation ( water / air / co2 / as per required to inert the gas within the stratifier tank) water flow system evacuates
the base of the tank "organic waste" to number 26 then injecting into the laser ash tower via number 28 and number 24
27. air compression air compressor systems - injects air into the tank to stir
28. air flow and waste pumping encasement
29. ultra high vacuum and magnetic "brush stir system" intermittently induced magnetism to allow the vacuum system
to "clean the brushes" when the electromagnetic system upon the brush conveyor is then disengaged
30. incinerator "laser tower" gas evacuation system directs "flu" gas to subsequent gas processing - zero environmental emission as the
air remix system then is returned to the environment only with slight thermal temperature difference - free energy allows for the function
cost effective
31. Carbon dioxide injection gas line
32. rotating waste distributor (like a coffee roaster stir system)
33. internal waste distributor rotates gated drop
34. carbon dioxide laser system heats a metal grate that vibrates like a mining "hopper"
35. high temperature vibrator bounces with reducing orifice to limit size of the drop ash
36. high temperature ash vibrator control / hydraulics and insulated solid metal linkage system
37. access stairs
38. blow down containment tanks - used if excessive incinerator internal pressure exceeds tolerance
39. evacuation pumping connects to the air stratification and air remix system in number 57
40. water tank water level send
41. bio solids stratification tank tank base internal stir brush out force high pressure water jets
42. water intake
43. water pump system
44. base brush variable speed hydraulic drive rotation bi-directional capacity
45. internal tank base brush control system hydraulic pressure switching to control speed and direction of the base brush
46. heavy bio sludge intake
47. air / gas dispersal rotating "wheel"
48. air injection bubbler
49. water fin propeller down force vector
50. bio sludge level send
51. hydraulic fluid pressure pumping and control systems electronic connection to system control helm
52. main shatter tumbler electric drive motor system - rotates the shatter tumbler
53. main electric clutch hydro static
54. hydro-static automatic gear selection transmission and drive gear assembly
55. shatter tumbler internal "ribs" allows the system to dump and re-dump the garbage into the shatter breakers until the particle size is
correct to exit the tumbler upon the conveyor
56. main shatter tumbler
57. gas flow control system room connects to the isolation gas stratifier to cause safe inert handling of liberated waste gas that could
become combustible so that the processes are only carried out with inert percentiles
58. flow pipe ( hot air injected) contains spin brush to stir the plastic and metal particle
59. electrostatic / electromagnetic rotating brushes
60. electrostatic / electromagnetic rotating raker
61. low temperature garbage "shatter" hammers -the shatter hammers rotate at variable rates of rotation to pulverize the N2 garbage
62. hydraulic driven piston garbage "pusher" prevents garbage from getting stuck in the drop chute entering the shatter tumbler
63. radioactive contamination removal conveyor
64. piston connected lift plate decompresses the ash
65. spinning out load ash distributor plate directs ash to the auger number 66
66. out load auger
67. bio sludge out load conveyor
68. fire suppression system injects fire suppressant into the laser chamber
69. hydraulic piston and connection rod assembly to the ash lift plate
70. water tank
71. main water tank control system and water pump
72. water spray tray "encased" to clean the bio lift conveyor that off loads the bio sludge
73. high pressure water jet manifold
74. bio sludge auger loads to the vertical tray conveyor to dump into the laser tower to then incinerate the bio-sludge to ash
75. off load conveyor
76. load conveyor with drag raker that flex
77. load conveyor with drag raker that flex
78. load conveyor with drag raker that flex
79. conveyor clean system ( high pressure water injection system)
80. systems processing room - contains final metal / plastic separation / ash processing / continual metal slag production / plastic extrusion
81. hydraulic fluid pressure compression fittings - provides hydraulic fluid pressure to all system functions that require hydraulic fluid pressure
82. air craft beacon lamp
83. lightning suppression halo and mounting pole / environmental electrical ground
84. shatter tumbler gas control system - evacuates and cycle the gas within the shatter tumbler for safe operation
85. shatter tumbler gas control injection pipe
86. processing room h.v.a.c. system for environmental air
87. processing rooms system h.v.a.c. ( slag electric arc furnace ventilation - cycles to the gas stratification room for exhaust control)
88. processing room system h.v.a.c. ( final float wash separator ventilation and particle dryer exhaust)
89. final plastic separator slurry pump
90. water holding tank
91. water filtration with self cleaning filter - ejects collected material to processes
92. plastic dryer
93. auger drive hydraulics control system logic electronics to control processing room functions of all components including the h.v.a.c. systems
94. ash removal auger injects char to the plastic encapsulation system - off loads the vertical laser tower incinerator
95. auger intake guide chute / contains water injection system
96. final plastic metal separator
97. processing control room conveyor hydraulic sub - block hydraulic fluid pressure connection block for the plastics dryer off load conveyor
98. plastic off loads to 105 and the shattered metal to conveyor number 99 dumps to the arc furnace and subsequent metal slag processing
99. metal off load conveyor
100. roller conveyor
101. electric arc furnace feed conveyor
102. electric arc furnace
103. final billet / slag production of trash amalgam then used for structural components in laminate composites
104. off load conveyor and cooling system with process waste gas h.v.a.c. ventilation
105. plastics extruder / plastic processing to form multitude of component product "shape" sheet / pipe / slag / foam / brick
106. plastics tooling cutting and or composite unification systems
* Note - all systems components then electrically grounded with safety sensors
* Note - then occupiable spaces then fitted with fire suppression and gas detection systems to cause alarm if internal atmospheric
conditions stray from safe levels
* Note - roller brush pipes then also use CO2 injection to prevent metal powder from causing an explosion hazard then igniting from static
electricity the encasement pipe then rated at explosion proof capacity "end system unit encasements" also rated explosion proof capacity
*
