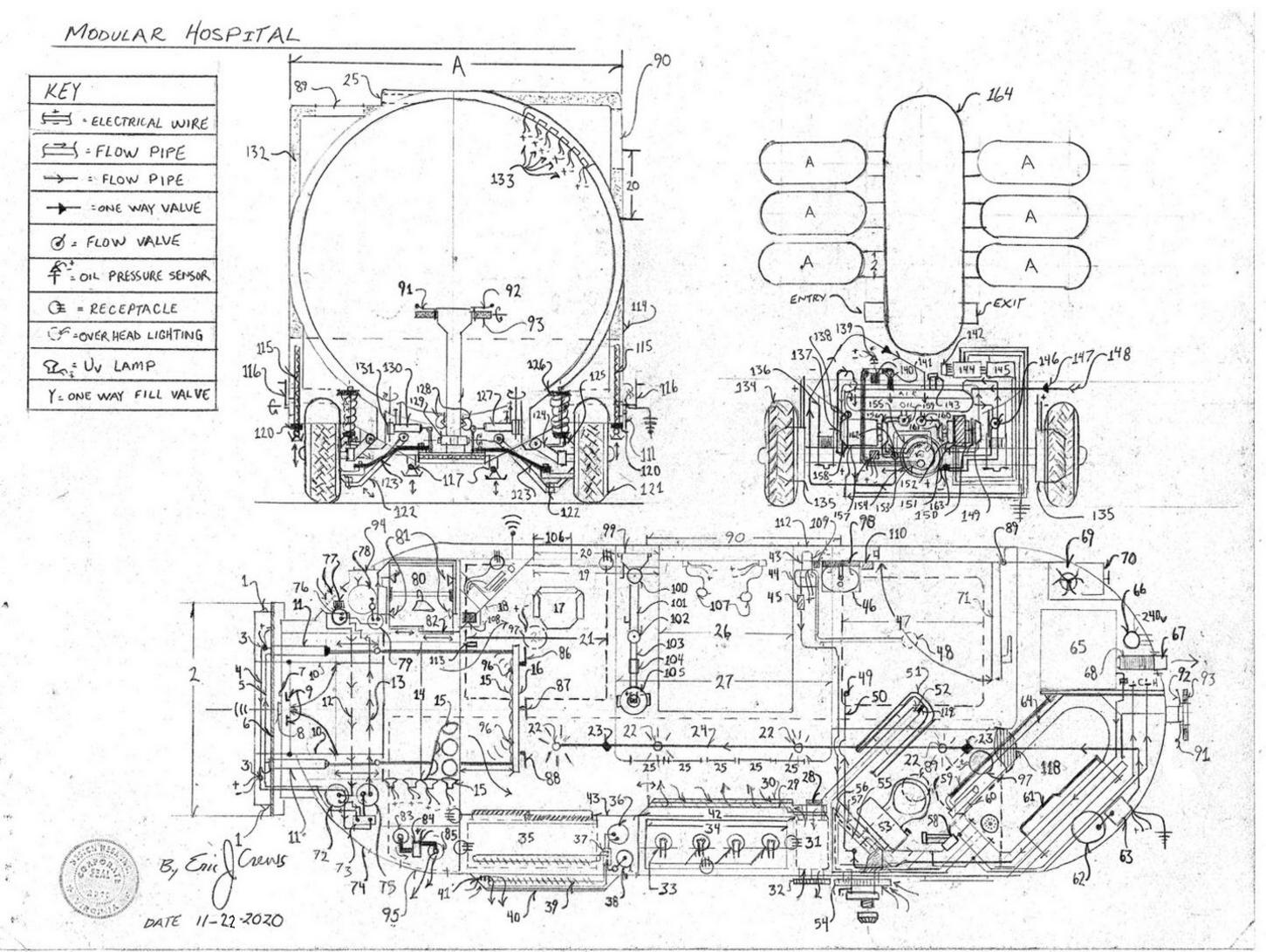

Modular Hospital ( a fuel less "live axle" vehicle)
The following design system is a mobile hospital room powered by an fuel less "draft accelerator" hydraulic / pneumatic electrical power system.
During pandemic or high demand for hospital beds, these design system applied allow for increased bed space. The units are self contained equipped with water harvesting / water purification, H.V.A.C. ( heating - ventilation - / air conditioning ) and septic. The design accommodates all the amenities of a standard hospital room but is mobile and able to be transported by a semi truck tractor trailer.
Parts List
1. dock entry lock tabs (sum of 36 about 360 degrees)
2. dock entry
3. pneumatic valve - The Ultra violet light (Uv), "clean chamber" door piston system is then open in the natural position and closes by low
pressure pneumatic pistons with pressure relief valve for safety so that if caught in the door the safety valve will open and decompress
4. low pressure / vacuum "return flexible hose" air pressure hose
5. air pressure hose
6. weather seal docking gasket
7. docking camera
8. docking laser bouncer "aligns" the docking entry to the orifice upon number 164
9. entry door handles
10. entry door
11. air compressor air pressure piston
12. air compressor air pressure pipe
13. air compressor air pressure pipe
14. Uv lamp (ultra violet light light chamber "clean chamber") contains full surround lighting to disinfect bio hazard hazardous material bio
suits. The chamber contains air feed and and exhaust for the bio hazard suits with the ports located to the right exit of the light chamber
exit upon the wall
15. Uv clean lamp
16. clean chamber door
17. Nurse office chair
18. computer station
19. medical equipment counter (storage space)
20. window
21. slide out generator "bay" / under floor electricity generator listed at https://www.designdeskinc.com/cross-pump-generator.html
22. fire suppression valve (Nitrogen)
23. fire detection sensor / fire alarm - causes the Nitrogen to be discharged
24. Nitrogen flow pipe
25. window
26. bed space
27. full wrap privacy curtain (surrounds the bed space)
28. systems control panel contains lighting on off switching, H.V.A.C. control switches, water harvesting (dehumidifier) control and water
pump on off switch control.
29. ceiling mount h.v.a.c. air discharge adjustable louvered vent
30. h.v.a.c. air intake plenum baseboard mount
31. h.v.a.c. unit
32. air intake air exhaust air filter
33. internal hutch track lamp
34. hutch arch
35. slide door refrigeration unit 36" tall with internal lighting
36. refrigeration compressor
37. refrigeration switch block - controls the refrigerators refrigerant gas flow - refrigerator "logic circuits"
38. refrigerant pressure tank
39. refrigeration condenser
40. screened vented refrigeration condenser exterior encasement
41. refrigeration condenser exterior encasement base air intake vents
42. clothes drawer "hutch" arch atop to accommodate television
43. electric water pump
44. waste basket
45. in line electric water heater
46. hand sink
47. under floor water holding tank
48. water drain
49. water pipe compression fitting
50. water flow pipe - under floor
51. hand rail
52. fixed divider "wall"
53. toilet
54. dehumidifier air intake air filter
55. dehumidifier water drain tank
56. septic drain lower drain recess
57. external air intake dehumidifier
58. in line electric water heater
59. shower curtain rod
60. shower safety hand rail
61. bath safety hand rail
62. fire suppressant Nitrogen pressure tank
63. fire suppression system control unit ( electronics )
64. floor air discharge port for heating or cooling the floor connects to the h.v.a.c. system
65. clothes washer / clothes dryer machines "dual machine unit stack"
66. clothes dryer receptacle 240v Ac - alternating current "outlet" contains electrical ground connection to the modular hospital ground pin
67. clothes dryer exterior vent - with flap
68. metal flexible clothes dryer air exhaust tube
69. bio hazard refuse container - external extraction able in sealed container
70. bio hazard extraction container - external extraction with locking handle
71. fire egress door
72. Uv light chamber door air pressure pressure tank
73. Uv light chamber electronics and flow valve switching system references the motion detectors upon the door , number 96 for
safety - to "prevent" an accidental door closure causing a safety problem
74. hull
75. Uv light chamber door vacuum holding tank connects to the air compressor system
76. air compressor
77. air compressor air intake filter
78. pneumatically pressurized liquid disinfectant - to clean the bio hazard suits
79. electric motor driven liquid disinfectant spray pump
80. bio suit spray closet illuminated ceiling - floor drain in sealed chamber "holding tank" with external clean out valve to drain the tank locking
81. disinfectant spray heads total height of the closet
82. safety glass sliding doors water tight seals
83. under floor septic tank vent
84. methane processing unit
85. external septic system vent
86. Uv light chamber door handle
87. gown hanger
88. Uv light chamber door handle
89. fire door hinge
90. windows sum of 4
91. park break disengage lever - hard link system with low pressure upon the hand grip lever (must be compressed to move the vehicle)
92. break lever
93. motor truck "live axle" throttle forward or reverse very low speed movement center "neutral" position also causes automatic wheel
/ tire breaking function. The hand bar control (vehicle steering) then when in the upright position causes a manual engagement of a
hard link "parking break" for safety by sheathed break cable.
94. access panel
95. access panel
96. motion detection sensor
97. over head lighting
98. hand sink lamp and mirror
99. inspection lamp wall mount adjustable height
100. lamp hinge mount
101. telescoping lamp post with locking position lever
102. lamp hinge
103. lamp post bar
104. lamp bar transverse hinge
105. lamp light unit high lumen with dimmer to adjust the lumen level
106. medical equipment wheel cart stow
107. lamp with metal flexible lamp post
108. multi switch light switch turns the over head lights on or off
109. potable water filter
110. hand towel and electric forced hot air unit
111. modular hospital unit electrical ground pin - inserts into the ground to electrically ground the vehicles electrical system for safety
112. our father prayer plaque
113. Uv chamber door opening motion sensor - turns the light chamber lamps off and on
114. surround exterior lighting (corner units contain a bubble level)
115. vehicle manual hand leveling hand crank linear gear (ratchet hand crank) sum of four ratchet system mounted upon the vehicles corners
116. vehicle leveling ratchet hand crank
117. vehicle hydraulic leveling system sum of eight about the vehicle chassis
118. roof mount heating and air conditioning system (a redundant unit)
119. toilet area over head light switch
120. angular locking brace stabilization for the hand crank leveling foot
121. automotive tire
122. automotive suspension lower ball joint swing arm
123. steering tie rod
124. tire assembly swing arm
125. upper ball joint connection bracket union mounts to the swing arm
126. automotive suspension strut
127. hydraulic steering piston assembly
128. hand control retention coil spring - raises the hand control "bar" to the vertical position
129. vehicle hand control "bar" hinge
130. hydraulic steering piston assembly
131. hydraulic piston hinge mounting (both hydraulic steering piston assemblies)
132. Sn ( tin ) impregnated rigid foam insulation - radiation shielding
133. lamp rings also acting as a structural support member to rigid the vehicle hull
134. "live axle" tire - motorized wheel assembly
135. electric and hydraulic wheel break assembly
136. "live axle" leaf springs mounts the wheel assembly to the vehicle hull
137. hydraulic fluid impeller - tandem rotates with the system dual shaft electric motor
138. over pressure safety valve "directs via flow pipe hydraulic over pressure to the dual component pressure tank containing
oil ( silicone oil ) and air pressure
139. electric oil pressure sensor - reports to the system logic electronic circuits aids in correct system functioning adjusting the
electrical "re-introduction circuit" that prevents generator "baug" from the dual shaft electric motor loading (drag) upon the generator system.
140. diaphragm type oil filter allows for oil flow by-pass when the oil velocity is high
141. one way flow valve
142. ribbon wire - multi wire "bus" clip relays information to the hand control unit system parameter display mounted between the hand
grips upon number 90
143. dual component oil / air pressure oil fill screw cap "pressure rated locking screw cap"
144. "live axle" electronics control unit
145. power management, fuse block, and system relay weather shielded box
146. differential hydraulic break electric valve - dual coil spring retainer with the valve causing fluid pressure causing breaking in the natural
position manual throttle (hand grip) motion then causes the disengagement of the break. the manual break levers also cause fluid
pressure to cause breaking actuation
147. pneumatic one way valve
148. air pressure fill valve - one way valve
149. high speed hydraulic fluid (oil) pump
150. sprocket and drive chain assembly - large sprocket tandem rotating with the output drive shaft of the ratio gear set then causing
a smaller receiving sprocket to then motivate an electrical Magnet (permanent magnet electricity generator with internal voltage regulator)
allowing for electricity production to then electrify the main dual shaft electric motor that causes hydraulic fluid pressure and speed with the
discharge oil then motivation the tandem union joined hydraulic impeller attached to the "live axle" differential causing the wheels to move.
151. Magneto (permanent magnet electricity generator) an Ac - alternating current electricity generator)
152. electric motor and high speed ratio gear set 1:50 ratio with the input rotation tandem rotating with number 161, hydraulic impeller. The
electric motor part of the unit then also tandem rotating with the input rotation of the ratio gear set and works with the "electrical reintroduction
circuit" ie... "the electrical reintroduction circuit directs an adjustable percentile of generated electrical current back to the units electric
motor contained in number 152. The high side of the ratio gear set then motivation the hydraulic pump at great speed causing system
advancement by the "hydraulic draft effect". A fluid can not be stretched in confinement this causes system rotation to increase. The
air pressure within the dual component pressure tank ( air pressure causes oil pressure) to then be at pneumatic pressurization levels
greater than the total mechanical resistance of the system components.
153. hydraulic drive impeller tandem rotating internal "wheel" motivates a reduction gear system ( high rotational spin converting to slow speed
high torque), who's output rotation is tandem to the differential drive axle causing wheel movement
154. dual shaft differential
155. hydraulic disk or drum break also acting able to break with electric solenoid compressing break pads upon the break disk or break
drum the "break disk" then tandem union rotating with the one shaft of the dual shaft differential
156. main hydraulic pump rotated by the main electric motor number 158
157. main line oil flow by pass valve control unit
158. dual shaft main electric motor causes the hydraulic pump to rotate
159. oil flow restriction valve " limits " the volume of oil to the main oil pump
160. generator (magneto) speed control electric valve - controls the oil flow volume
161. generator system oil flow impeller
162. drive line oil flow by pass or reverse flow direction control valve electric positioning with safety sensor - if fault detected locks electric
breaking systems
163. hydraulic and electric breaking unit for the differential break system
164. multi vehicle "hall" unit (tube with the "live axle" and leveling system), contains - h.v.a.c. ,nurses station, storage and separate septic
and lavatory
165. R.P.M. ( revolutions per minute ) sensor
166. oil inlet dampener valve - allows for structural integrity of the flow pipe preventing pipe implosion due to high suction
167. oil flow by-pass valve - assist in generator system speed by manual positioning and by the control circuits electrically adjusting flow valve
* Note - the "live axle assembly" then is mounted under the docking end of the vehicle directly under the Uv clean room.

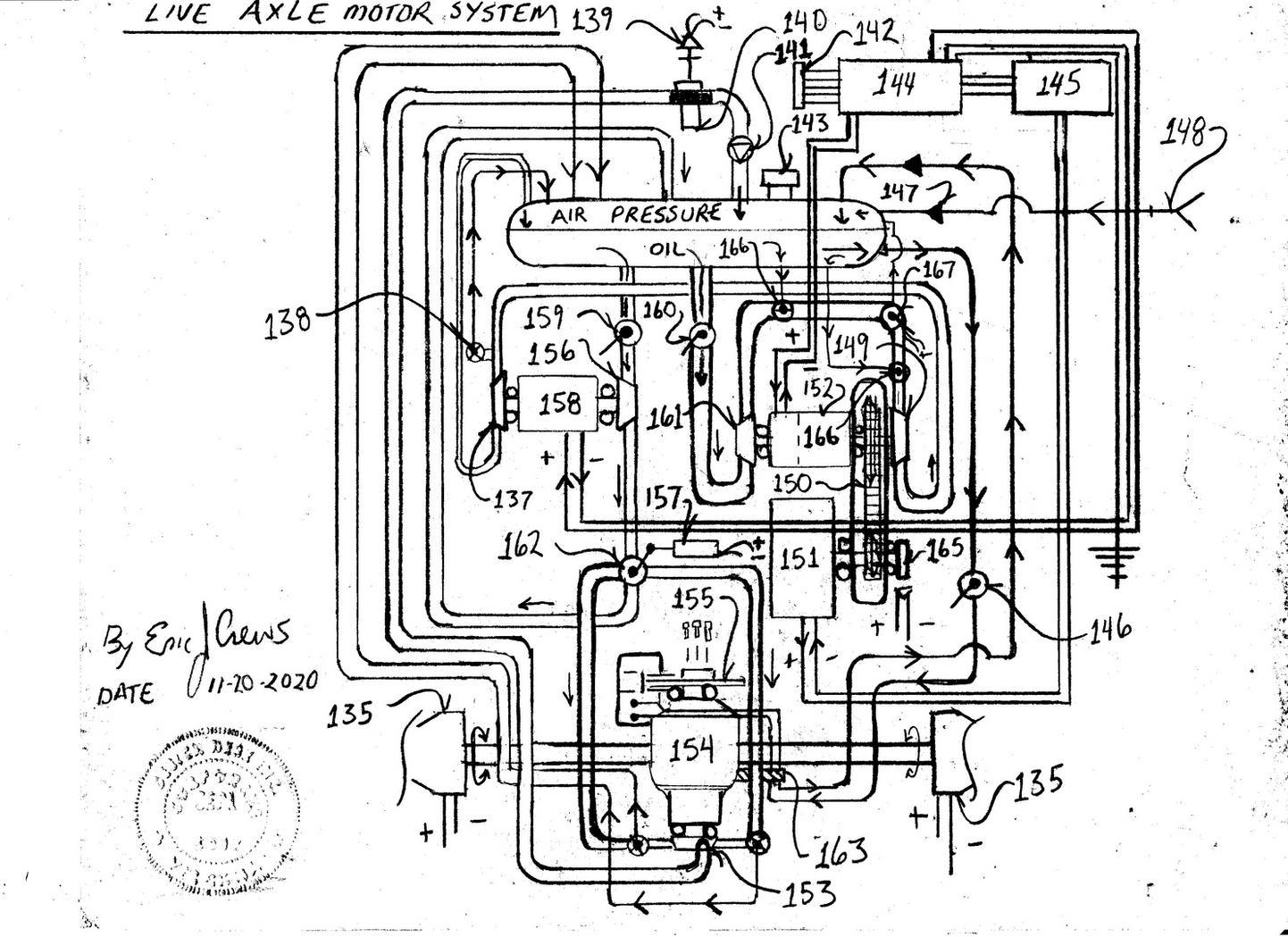

Following please find a description of the "live axle" flow system.....
Note - prior to oil pressure entry into number 153 the flow pipes then containing over pressure safety valve to allow for oil flow pipe safety
then directing over pressure back to the dual component oil / air pressure holding tank...
Note - air pressure causes oil pressure within the dual component pressure tank so that the "work" potential of the air pressure is cycled
Note - system start current then obtained from a cross pump generator listed at https://www.designdeskinc.com/cross-pump-generator.html
Note - the hydraulic fluid pressure to assist in the hand bar steering then obtained from the cross pump generator by additional power steering
unit fluid pump upon the drive belt assembly. The said hydraulic pump then also with fluid pressure directed to the break system to
insure the vehicle will be able to have a break function either hydraulic or electric breaking capacity.
Description
The Modular Hospital room is mobile to then be used in emergency situations where Natural disasters have made standard hospitals inoperable!
*
Geoengineering - Climate Change Mitigation
Design Desk Inc.
Disclaimer - If attempting to produce these design yourself additional engineering may be required.. Design Desk Inc. will not be held liable. If you proceed with construction your self it's at your own risk... by use of "free to use systems" you acknowledge and accept the terms.. ( Please note not all systems contained here in have been released ).
