Portable Construction Generator
The "Portable Construction Generator" is a portable power source to accommodate electricity requirements upon remote job sites where grid current is not available.

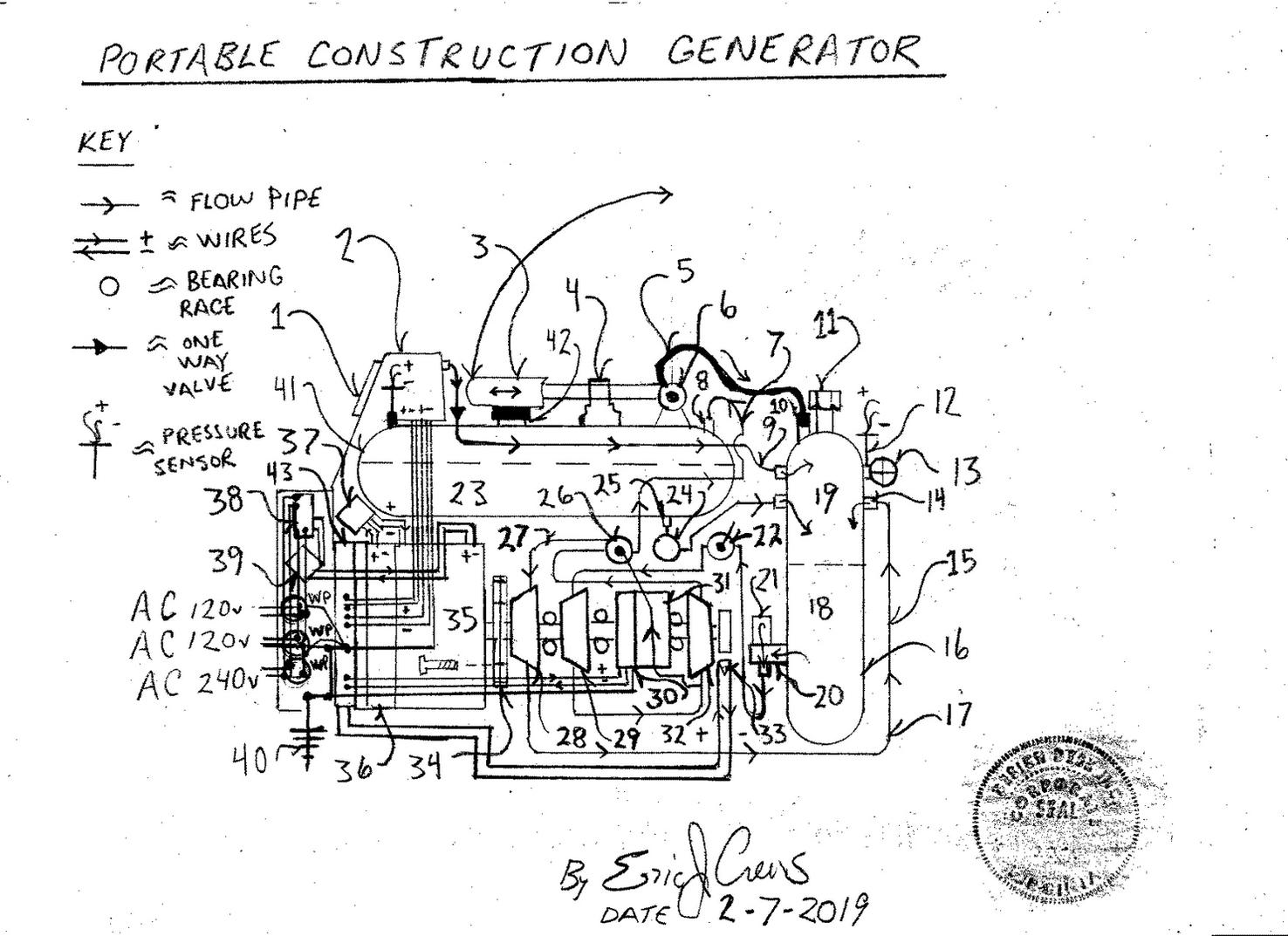

Parts List
1. control panel ( contain on/ off switch - " all stop function - also as an automatic function, electric output
meter , illuminated panel then weather safe
2. air compressor ( electric motor driven) contains automatic actuation electronic circuits to then engage the
air compressor when referencing the air pressure within the high pressure dual component pressure
storage tank.
3. manual hand air pump
4. manual air pump / hand pump retainer clip
5. air hose rated for pneumatic pressure
6. manual hand air pump hinge mounting base
7. oil return pipe
8. pressure tank coupling
9. pneumatic pressure rated pipe
10. one way valve and pressure tank coupling
11. high pressure rated screw cap with gasket
12. pressure sensor pneumatic electric reports to the systems logic processing system electronic
circuit control board
13. over pressure pressure relief vent valve
14. coupling / fitting accepting threaded pipe union
15. oil flow pipe ( silicone oil )
16. dual component pressure storage tank ( silicone oil and pneumatic pressure " air pressure" causes
oil pressure.
17. electrical ground point - the flow pipe is electrically grounded to prevent static electricity due to flow of oil
18. silicone oil
19. air pressure
20. oil filter mounting base also as a coupling to the dual component pressure storage pressure
tank , number 16 allows for exhaust "discharge " oil from the dual component pressure storage tank
21. oil filter
22. oil flow valve / manual and electric contains solenoid to assist in the " all stop " function to then close the
valve stopping the oil flow
23. oil reservoir silicone oil
24. oil pressure sensor and equilibrium dampener valve ( opens and allows oil from the reservoir to then enter
the pressure tank pressurized
25. oil reservoir flow pipe threaded fitting
26. flow valve with over pressure divergence valve allows for the over pressure " back pressure" to then vent
to the oil reservoir under high pressure - an oil pressure regulation valve
27. oil flow pipe
28. oil pump
29. counter tilt hydraulic ( oil ) impeller
30. electric drive motor
31. 1:20 ratio gear set high rotation side of the ratio gear set tandem with the armature of the
electric motor, number 30
32. hydraulic impeller- number 28 causes hydraulic draft - suction of the oil to then accelerate the total
generator drive line assembly
33. hall effect R.P.M. ( revolutions per minute ) sensor
34. union bolt plates
35. high voltage generator
36. magneto p.m. ( permanent magnet ) generator
37. voltage regulator
38. circuit breaker box ( illuminated by lamp)
39. final voltage regulator for both Ac 120v and 240v electricity output
40. electrical ground ( as a physical metal pin inserted into the earth when the system is in use
41. oil tank reservoir ( a pressure rated container)
42. oil reservoir pressure rated screw cap with gasket
43. system logic / mapping control circuit electronics board "bay"
Disclaimer - If attempting to produce these design yourself additional engineering may be required.. Design Desk Inc. will not be held liable. If you proceed with construction your self it's at your own risk... by use of "free to use systems" you acknowledge and accept the terms.. ( Please note not all systems contained here in have been released ).
