Raptor

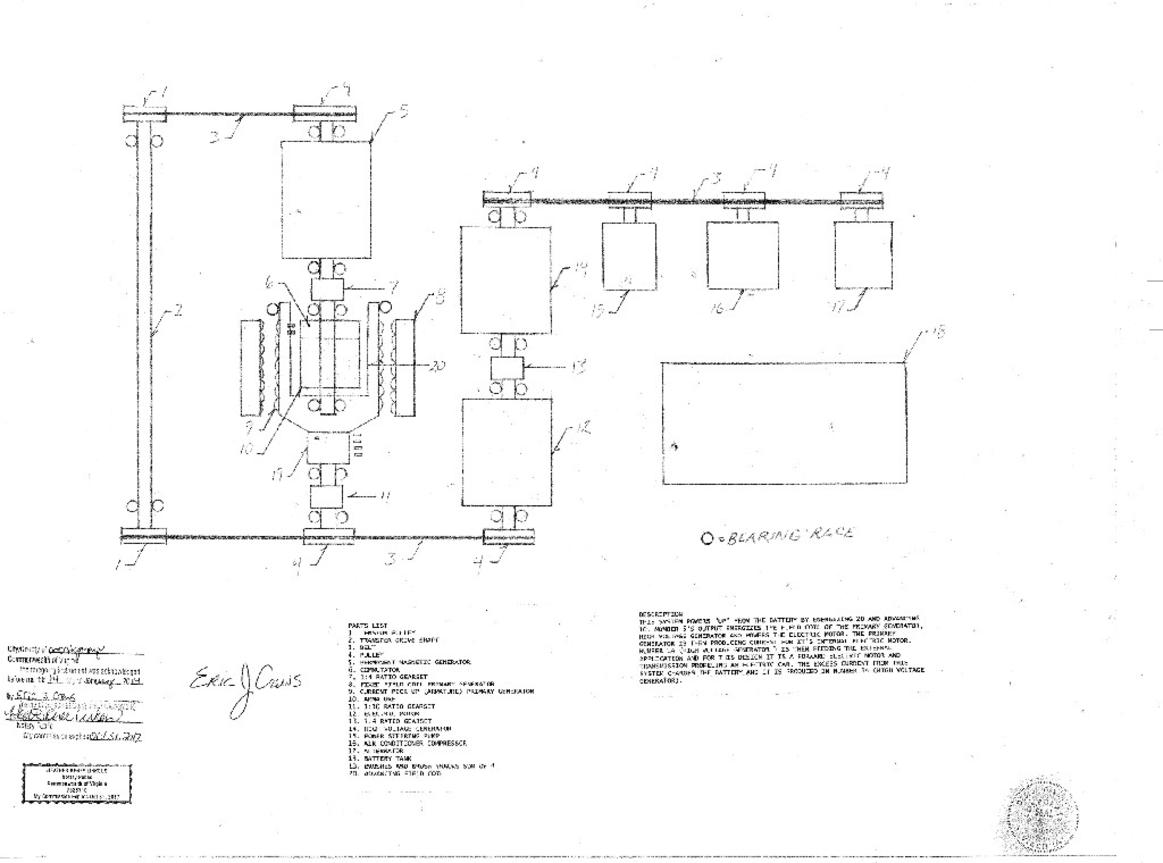

PARTS LIST
1. TENSION PULLEY
2. TRANSFER DRIVE SHAFT
3. BELT
4. PULLEY
5. PERMANENT MAGNETIC GENERATOR
6. COMMUTATOR
7. 1:4 RATIO GEAR SET AND ELECTROMAGNETIC CLUTCH
8. FIXED FIELD COIL PRIMARY GENERATOR
9. CURRENT PICK UP (ARMATURE) PRIMARY GENERATOR
10. ARMATURE
11. 1:10 RATIO GEAR SET
12. ELECTRIC MOTOR
13. 1:4 RATIO GEAR SET
14. HIGH VOLTAGE GENERATOR
15. POWER STEERING PUMP
16. AIR CONDITIONER COMPRESSOR
17. ALTERNATOR
18. BATTERY TANK
19. BRUSHES AND BRUSH TRACKS SUM OF 4
20. ADVANCING FIELD COIL
DESCRIPTION
THIS SYSTEM POWERS "UP" FROM THE BATTERY BY ENERGIZING 20 AND ADVANCING 10. NUMBER 5'S OUTPUT ENERGIZES THE FIELD COIL OF THE PRIMARY GENERATOR, HIGH VOLTAGE GENERATOR AND POWERS THE ELECTRIC MOTOR. THE PRIMARY GENERATOR IS THEN PRODUCING CURRENT FOR IT'S INTERNAL ELECTRIC MOTOR. NUMBER 14 (HIGH VOLTAGE GENERATOR ) IS THEN FEEDING THE EXTERNAL APPLICATION AND FOR THIS DESIGN IT IS A FORWARD ELECTRIC MOTOR AND TRANSMISSION PROPELLING AN ELECTRIC CAR. THE EXCESS CURRENT FROM THIS SYSTEM CHARGES THE BATTERY AND IT IS PRODUCED IN NUMBER 14 (HIGH VOLTAGE GENERATOR).
