Water Trap
The "Water Trap" is a low cost method to harvest water or cause ,if applied in large number, it will produce a chilled basin to reduce the thermal stress of plant life encountered in some regions. A "passive" de-humidification system.

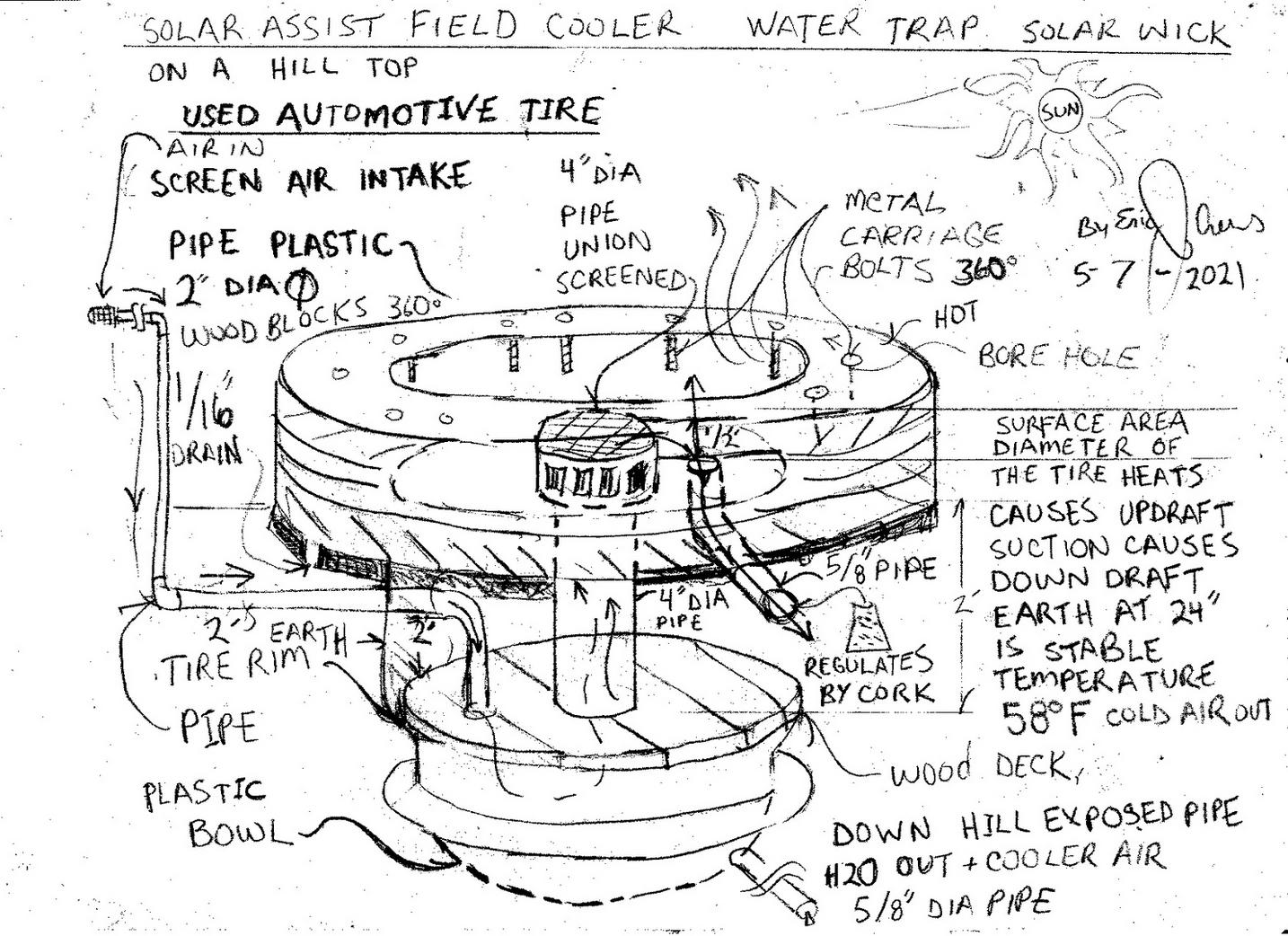

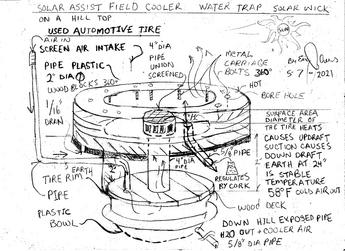

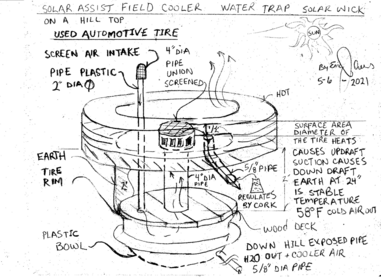

The elbow pipe allows for air flow both direction causing an assisted up draft where as the lower "5/8" inch water pipe will then emit coder air while also causing ambient humidity to become trapped in the bowl. The air flow "up draft then cause to produce adhesion of air flow pulling the air under the earth to chill.....The water must be boiled or further heated to become potable water !!! ( solar boiler ) by is safe for field applications ie... to water plants.....
The design then assisting in field water evaporation reduction reducing total agricultural water consumption!
The tire may be supported 2" above the ground on wood blocks / other...to allow rainfall to drain.... the spacing between block then small 1/16" of an inch about the total circumference of the tire only one space at 1/16" the rest acts like a seal to incur the suction effect....
All contact inner system surfaces should be clean, in good repair and of surface material to withstand the elements...
Periodic system cleaning required......
*
