Woozie
Parts List

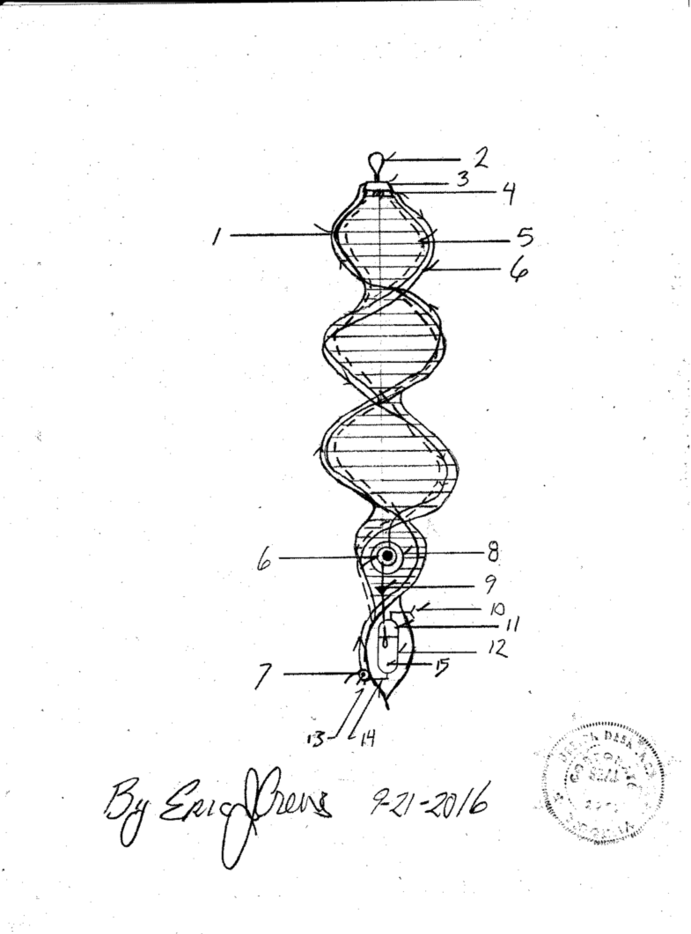

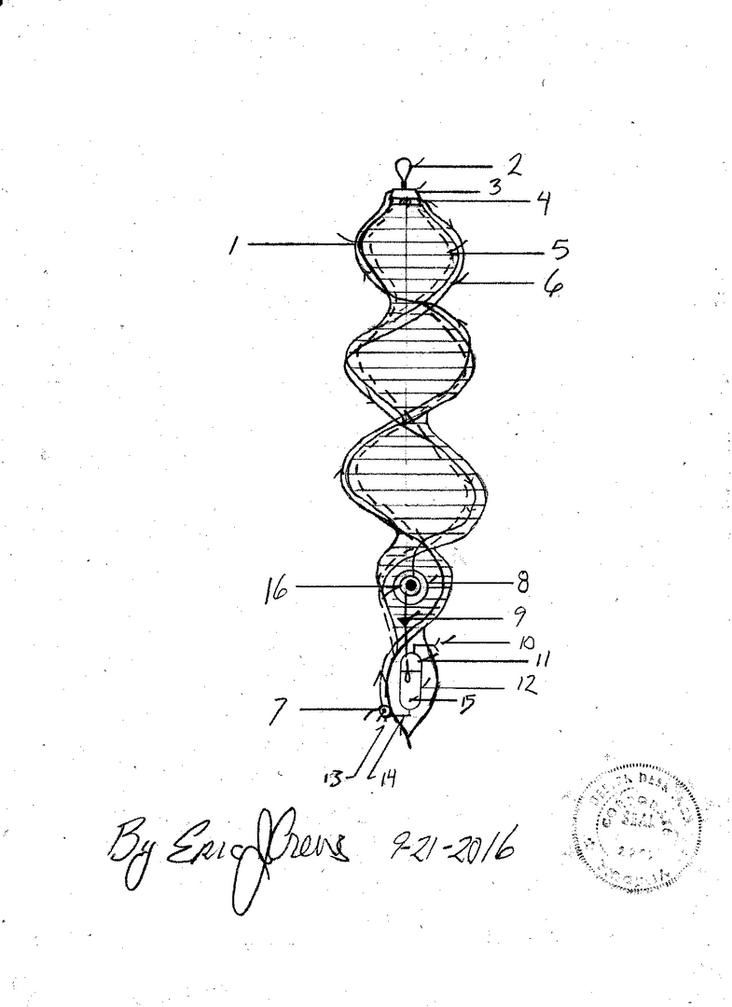

1. Up flow hydraulic tube ( silicone oil non flammable non electrically conductive)
2. Swivel hoop with field coil for the electric motor ( fixed ie lock mounted with the top of the swivel )
3. Top gearing system spins Woozie upon it's polar center pointassisted by an internal electric motor. The system design is then drafting hydraulic pressure and then accelerating the lower pump gear to then add pressure and velocity to counter act the magnetic field resistance of the direct current dynamo that is producing electricity controlled by potentiometer and voltage regulator to power the rotational assist electric motor and the lighting "ropes" along the edge of the modified helix Woozie wind spinner..
4. lower pump driven by top impeller gear at greater rotational rate allows for the spinning mass with inertia the to cause greater fluid velocity in the down flow impaling the hydraulic impeller then causing rotation in the dynamo.
5. light rope
6. down flow tube
7. Directional flow valve with drain position
8. Circular orifice
9. One way flow valve
10. Hydraulic oil and pneumatic pressure fill valve
11. Air pressure
12. Dual component pressure tank
13. Drain port ( tube)
14. Oil flow tube
15. Oil ( non- conductive electrically non- flammable)
16. Hydraulic impeller plus gearing 1:10 ratio gear set with the input rotation produced by the hydraulic flow causing the dynamo to rotate at ten times the rotational rate connected to a Dc ( direct current ) dynamo
generator with the electricity out put then regulated by a voltage regulator and subsequent split circuit to then light the lamps and feed a given current level to the top mounted electric motor.
A branch flow tube, then before the dynamo's impeller, also will then flow into the ratio gear set then also containing an internal hydraulic impeller tandem rotating with the high side of the ratio gear set then counteracting the resistance from speed amplification produced when using a ratio rate incline by gearing to increased speed. the exhaust flow from the additional ratio gear set internal hydraulic impeller will then also enter the intake flow of the dynamo's hydraulic impeller to increase the speed and level of current then produced.
A max pressure safety valve then also upon the dynamo's hydraulic impellers casing then venting into the pressure bottle also causing the reduction / restriction of oil ( flow rate ) then by an adjusting steel cored connected to number 7 reducing the valves flow rate... when the safety valve is then caused open actutating a lever causing the steel cord to move closing the valve , number 7, at variable levels.

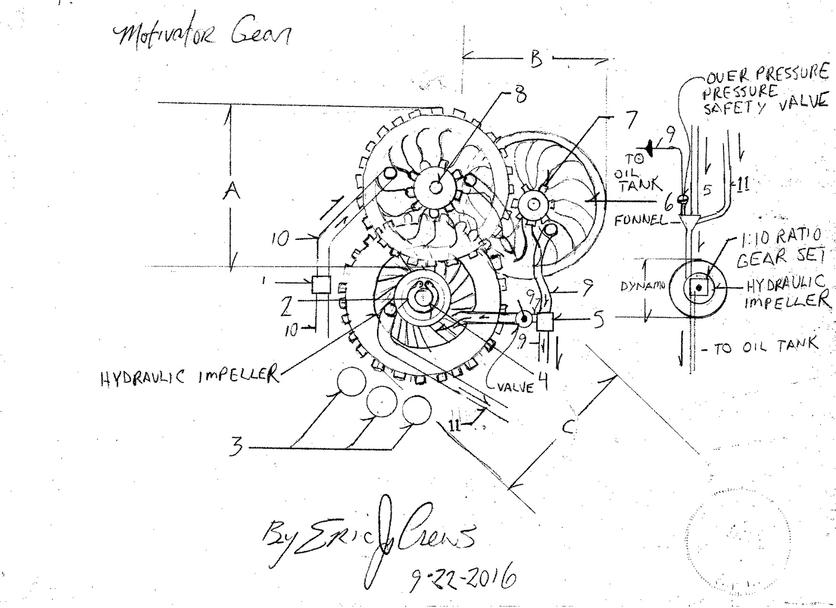

Following... find the top gear assembly schematic for the Woozie... the assembly then contained in a circular casing that will allow for water shedding with a slight dome tapper upon the top side of the assembly.
Parts List
1. Flow tube pressure coupling
2. "c" clip ( causes the gear "C" then locked tandem to the core shaft of the Woozie) the threaded core shaft then extends higher with a locking bolt in addition to a free spinning swivel the as the Woozie hanger.
3. The counter weights are the to balance the gear mechanism to cause stable rotation with equal centrifugal weight.
4. Core shaft also then as an armature of an electric motor with the stator then affixed to the stationary part of the hanging swivel. A " thru bore " slip ring for electrical current transference is also required to electrify the field coil / stator...
5. tube coupling ( optional additional valved outlet to then direct high velocity hydraulic flow to an additional hydraulic impeller then places upon "C" and causing the tandem rotation from the additional hydraulic impeller to then advance "C" at greater rate of rotation the additional hydraulic impeller's fluid exhaust to then be directed via tube to the intake of the hydraulic impeller then driving the dynamo.
6. hydraulic pump
7. hydraulic pump drive gear
8. hydraulic impeller drive transference gear
9. out flow tube
10. in flow tube from the pressure tank

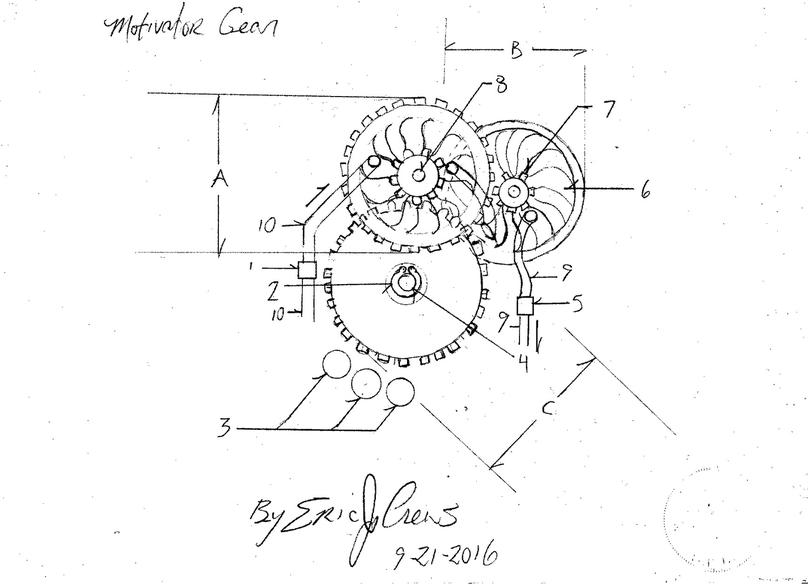

"A" = hydraulic impeller with gear
"B" = hydraulic compressor with receiving gear
"C" = center gear ( rotates the Woozie)The hydraulic impeller upon "C" then allows for 360 degree travel of the oil and a slightly risen done casing to then allow for exhaust
of the oil at a higher elevation.
The flow tube, number 9, then from the over pressure safety valve then also contains a one way valve depicted as the solid triangle. A tube lamp shade may also cover the system. The tube lamp shade may also then contain vents for lighting and pockets sewn unto the exterior and upon the interior to then accommodate plant pots.
A watering system ( via micro de- humidification ), will then be mounted between the anchor and the field coil / stator of the electric motor with a plug that upon the field coil mounting bolts ( current lock post threaded with nuts then attaching to a quick plug receptacle sum of two one for the dehumidifier the second for a micro distillation system ie http://www.designdeskinc.com/passive-water-condenser.html ),
Allowing for the remote controlled micro de-humidification system to then produce water from air. The water then being able to be used to water the plants via tubes connected to the water catch container upon the micro de-humidification system. The second plug atop the field coil / stator then will be able to recharge the battery in the remote control for the system.. including the lighting and "start rotation system then from the battery in the charger then used to power the electric motor and adjusting the flow system. via solenoid system . Dual 9v rechargeable batteries bays then as the charging recess... ie charges two batteries
The lighting assembly may also be of "grow lighting" type to then be used in a green house with the mechanism then providing heat ( dehumidifier condenser ) / air circulation, light and clean water as well.
Static electricity will form within the hydraulic flow tubes so as a precaution the electrical grounding will be attached to the flow tubes and then discharged via capacitance then activating a pulsing light to indicate excessive charge....
The design system as refined will then contain the flow tubes within the edge of the helix and be hidden also allowing for the edge strip to also be curved and or an additional strip then containing a luminary light strip. Material selection of a variety of Material...Acrylic , Wood , Stainless steel.....even plastic ( translucent)...., [ the lamp may fact toward the center illuminating the helix ].. or solid or opaque..)
